Explore our range of Stainless Steel 317 and 317L Coiled Tubing, including UNS S31700 and S31703 coiled tubes. Exporter of seamless and welded 317/317L stainless steel coiled tubes engineered for high corrosion resistance in chemical, marine, and industrial applications. marine-grade 317L coiled tubes, high-strength 317/317L seamless coiled tubing, precision SS 317 coils, and heat-exchanger-grade TP317L coiled tubes for condensers and process systems. Request your price quote now.

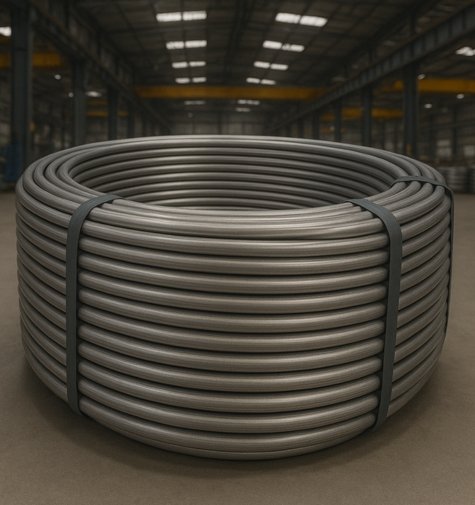

New Eagle Industrial Corporation supplies high-performance ASTM A269 TP317/317L coiled tubes engineered for demanding fluid and gas transfer operations. Manufactured from austenitic stainless steel grades with enhanced molybdenum content, these tubes deliver superior resistance to pitting, crevice corrosion, and aggressive chemical media. Each coil is produced under strict dimensional and metallurgical control, ensuring consistent wall thickness, high surface integrity, and excellent weldability for complex industrial applications.
Our SS TP317 coiled tubes are available in seamless and welded constructions, offering versatility for high-pressure systems, precision instruments, and continuous-coil heat exchangers. The low-carbon 317L variant minimizes carbide precipitation during welding, providing exceptional corrosion resistance in chloride-rich environments such as desalination plants, refinery units, and offshore facilities. Their outstanding mechanical strength and stability at elevated temperatures make them ideal for long-term service in harsh operating conditions.
We ensure each Stainless Steel 317L coil tubing meets international quality specifications through rigorous eddy current testing, hydrostatic testing, and microstructural evaluation. Our tubes are supplied in custom sizes, coil lengths, and surface finishes to support varied process requirements across chemical processing, pharmaceutical manufacturing, marine engineering, and instrumentation systems. With a commitment to precision and reliability, we provide tubing solutions that enhance system efficiency and long-term performance.
Stainless Steel 317L Coiled Tubing – Technical Specifications
High corrosion resistant 317 coiled tubes – Chemical Composition
The higher molybdenum content in 317/317L stainless steel provides excellent resistance to pitting and crevice corrosion, making these coiled tubes ideal for harsh chemical and chloride environments.
| Element | 317 (UNS S31700) | 317L (UNS S31703) |
|---|---|---|
| Carbon (C) | ≤ 0.08% | ≤ 0.03% |
| Chromium (Cr) | 18.0 – 20.0% | 18.0 – 20.0% |
| Nickel (Ni) | 11.0 – 15.0% | 11.0 – 15.0% |
| Molybdenum (Mo) | 3.0 – 4.0% | 3.0 – 4.0% |
| Manganese (Mn) | ≤ 2.00% | ≤ 2.00% |
| Silicon (Si) | ≤ 1.00% | ≤ 1.00% |
| Phosphorus (P) | ≤ 0.045% | ≤ 0.045% |
| Sulfur (S) | ≤ 0.030% | ≤ 0.030% |
| Nitrogen (N) | ≤ 0.10% | ≤ 0.10% |
| Iron (Fe) | Balance | Balance |
ASTM A269 TP317/317L stainless steel coiled tubes – Mechanical Properties
SS 317/317L coiled tubes combine high tensile strength with excellent ductility, making them ideal for high-pressure, high-corrosion, and continuous-coil process applications.| Property | 317 (UNS S31700) | 317L (UNS S31703) |
|---|---|---|
| Tensile Strength (MPa) | 515 MPa min | 485 MPa min |
| Yield Strength 0.2% Proof (MPa) | 205 MPa min | 170 MPa min |
| Elongation (%) | 40% min | 40% min |
| Hardness (Brinell HBW) | 95 max | 95 max |
| Modulus of Elasticity | ~193 GPa | ~193 GPa |
| Density | 8.03 g/cm³ | 8.03 g/cm³ |
High-strength 317/317L seamless coiled tubes – Equivalent Grades
These equivalent grades confirm global compatibility, making SS 317/317L coiled tubes suitable for international projects across chemical, marine, and high-corrosion industries.
| Standard | 317 | 317L |
|---|---|---|
| UNS | S31700 | S31703 |
| WNR (Werkstoff Nr.) | 1.4449 | 1.4438 |
| EN / DIN | X3CrNiMo13-4 (varies by product form) | X2CrNiMo13-4 (varies by product form) |
| JIS | SUS317 | SUS317L |
| BS | 317S16 | 317S11 |
| GOST | 03Ch17N13M3 | 03Ch17N13M2 |
| AFNOR | Z3CND19-13 | Z2CND19-13 |
What is the difference between TP317 and TP317L in coiled tubing applications?
- Carbon Content: TP317L has a lower carbon content (≤0.03%) compared to TP317, which minimizes the risk of carbide precipitation during welding.
- Corrosion Resistance: The reduced carbon in TP317L enhances resistance to intergranular corrosion, making it ideal for high-chloride and welded applications.
- Mechanical Strength: TP317 provides slightly higher tensile and yield strength than TP317L, making it suitable for applications where higher mechanical properties are required.
- Applications: TP317L is commonly used in heat exchangers, condensers, and chemical process piping where welding is frequent, whereas TP317 may be chosen for general corrosion-resistant tubing with moderate mechanical requirements.
What testing is performed on ASTM A269 TP317/317L coiled tubes?
- Eddy Current Testing: Ensures the tube surface is free from cracks, laps, or internal defects.
- Hydrostatic Testing: Confirms the tube can withstand internal pressure without deformation or leakage.
- Intergranular Corrosion Testing: Verifies the material’s resistance to sensitization and corrosion along grain boundaries.
- Flattening Test: Checks the tube’s ductility and confirms it can withstand bending or shaping without cracking.
- Dimensional Inspection: Validates precise outside diameter, wall thickness, coil length, and uniformity to meet ASTM A269 specifications.
Are custom coil sizes available for TP317/317L stainless steel tubing?
- Diameter & Wall Thickness: Coils can be manufactured in a wide range of diameters and wall thicknesses to match process requirements.
- Coil Lengths: Custom lengths can be provided for specific equipment layouts or project specifications.
- Surface Finishes: Available in bright annealed, pickled & passivated, or other finishes for corrosion protection and improved surface quality.
- Application Specifics: Tailored for heat exchangers, condensers, instrumentation lines, and other industrial applications where precision tubing is required.
Global Export Network for Stainless Steel 317/317l Coil Tubing
As a trusted manufacturer and exporter, New Eagle Steel supplies TP317L/TP317 SS Coiled Tubes globally. Our high-performance products are widely used in chemical processing, pollution control, marine, and pharmaceutical industries across Europe, the Middle East, Asia, and the Americas, ensuring exceptional corrosion resistance, reliability, and precision engineering.
- Middle East: United Arab Emirates (UAE), Saudi Arabia, Qatar, Kuwait, Oman, Bahrain, Yemen, Iran, Iraq, Israel, Jordan, Lebanon, Syria, Turkey
- North Africa: Egypt, Algeria, Morocco, Tunisia, Libya
- Asia Pacific: Singapore, Malaysia, Vietnam, Indonesia, Thailand, Philippines, Cambodia, Laos, Myanmar, Brunei, Timor-Leste, Taiwan, Japan, South Korea
- Europe: Spain, Belgium, Netherlands, France, Germany, Italy, United Kingdom (England), Poland, Cyprus, Malta, Russia
- Americas: Brazil, Mexico, Chile, Peru, Colombia, Argentina, United States (USA), Canada
- India: Chennai, Coimbatore, Bangalore, Thiruvananthapuram, Pune, Kolkata, Kerala, Karnataka, Gujarat, Mumbai, Delhi
ASTM A269 TP317/317L Coiled Tubes Applications in Manufacturing and Industrial Systems
Oil & Gas Industry
Petrochemical & Chemical Processing
Power Generation (Thermal, Nuclear & Renewable)
Marine & Offshore Engineering
Pharmaceuticals & Biotechnology
Food, Beverage & Dairy Processing
Pulp & Paper Industry
Aerospace & Defense
Automotive & Transportation
Instrumentation & Control Systems
Water Treatment & Desalination
HVAC & Heat Exchanger Systems
Construction & Infrastructure Projects
Mining & Metallurgy
